2017 650MT · CF650-3
FACTORY CODE CF650-3
650MT
2017 model year
Catalog entries for this year and factory code. Verify the VIN before ordering.
DIAGRAMS / 47
Choose a section
Filter diagrams
System
All systems
Engine
Chassis
Brakes
Electrical
Bodywork
Other
Search
Reset
47 of 47 entries

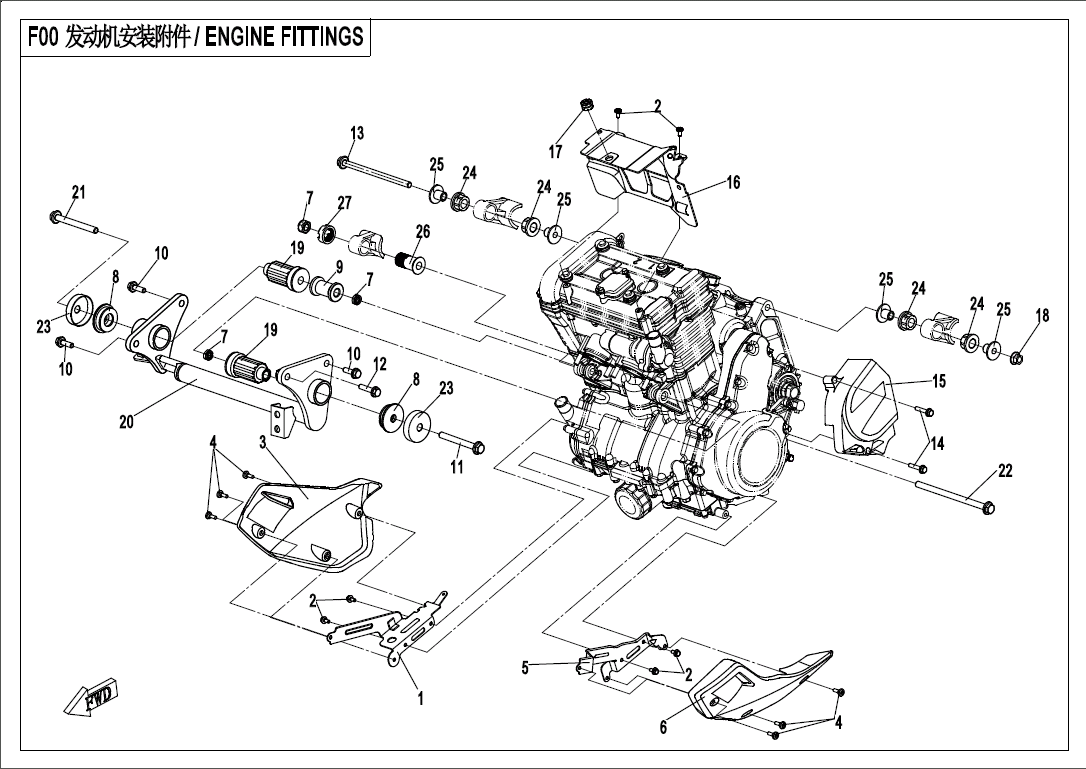

Engine Fittings - F00
27 parts ↗

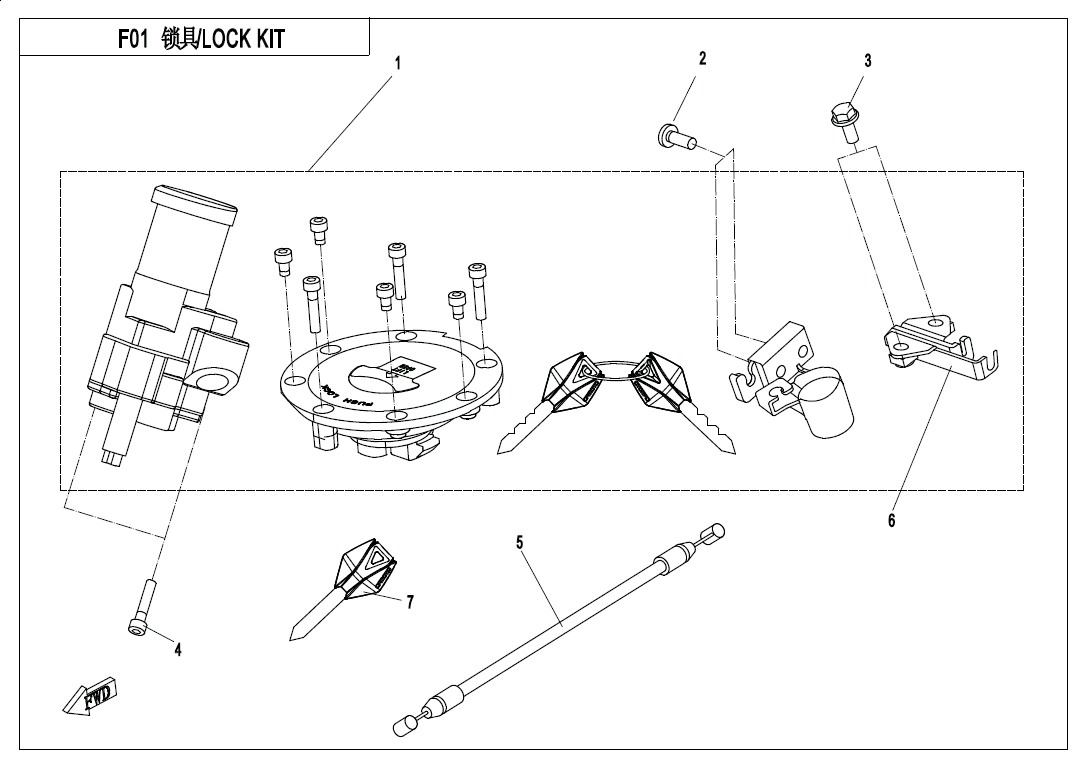

Lock Kit - F01
7 parts ↗

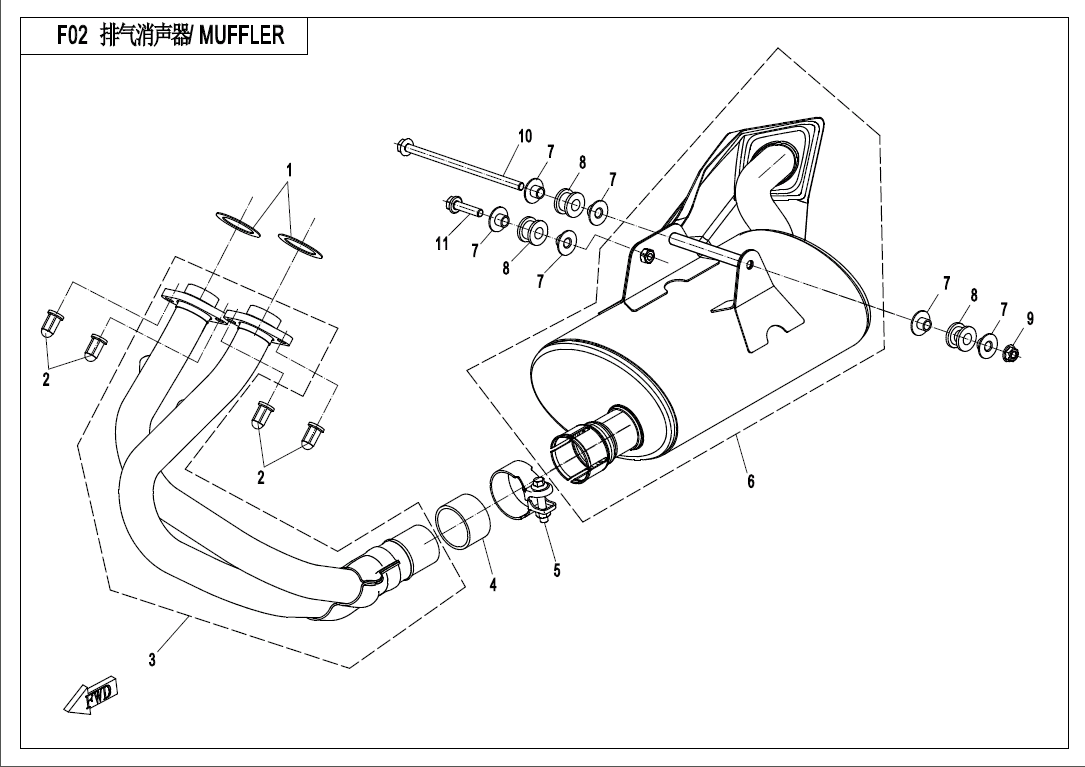

Muffler - F02
11 parts ↗

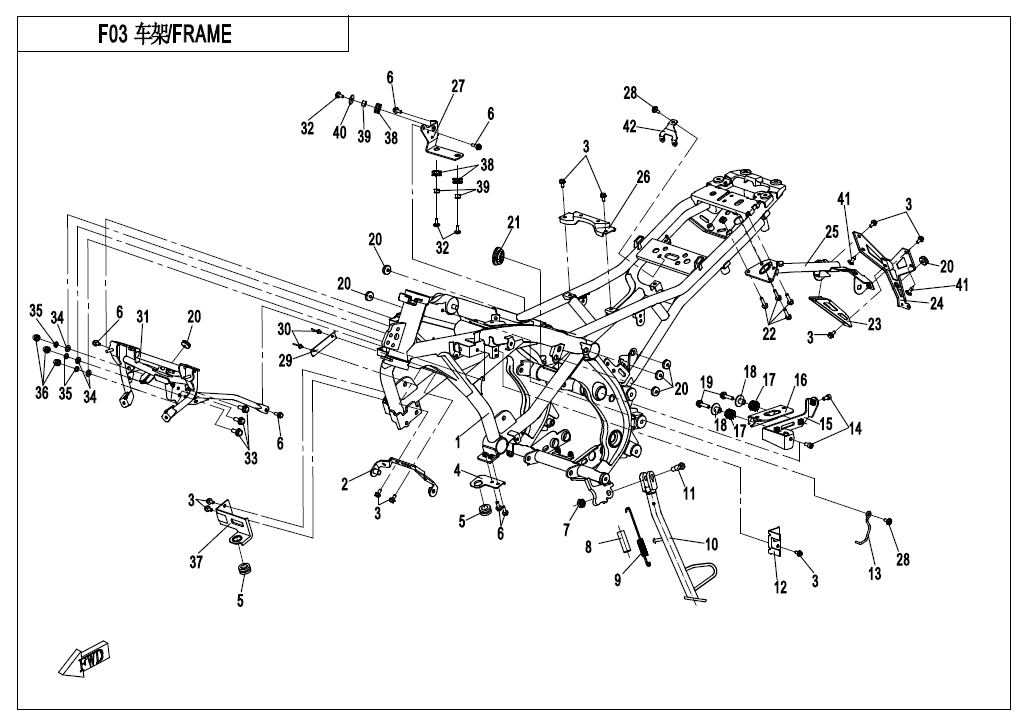

Frame - F03
44 parts ↗

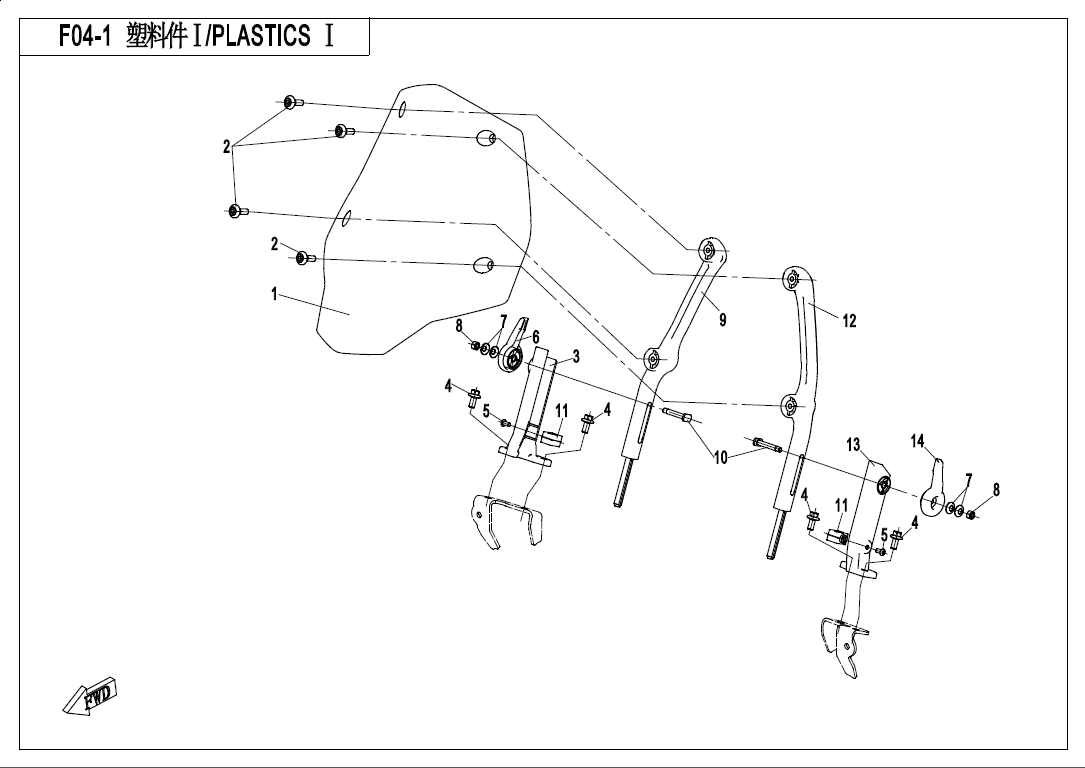

Plasticsâ - F04-1
14 parts ↗

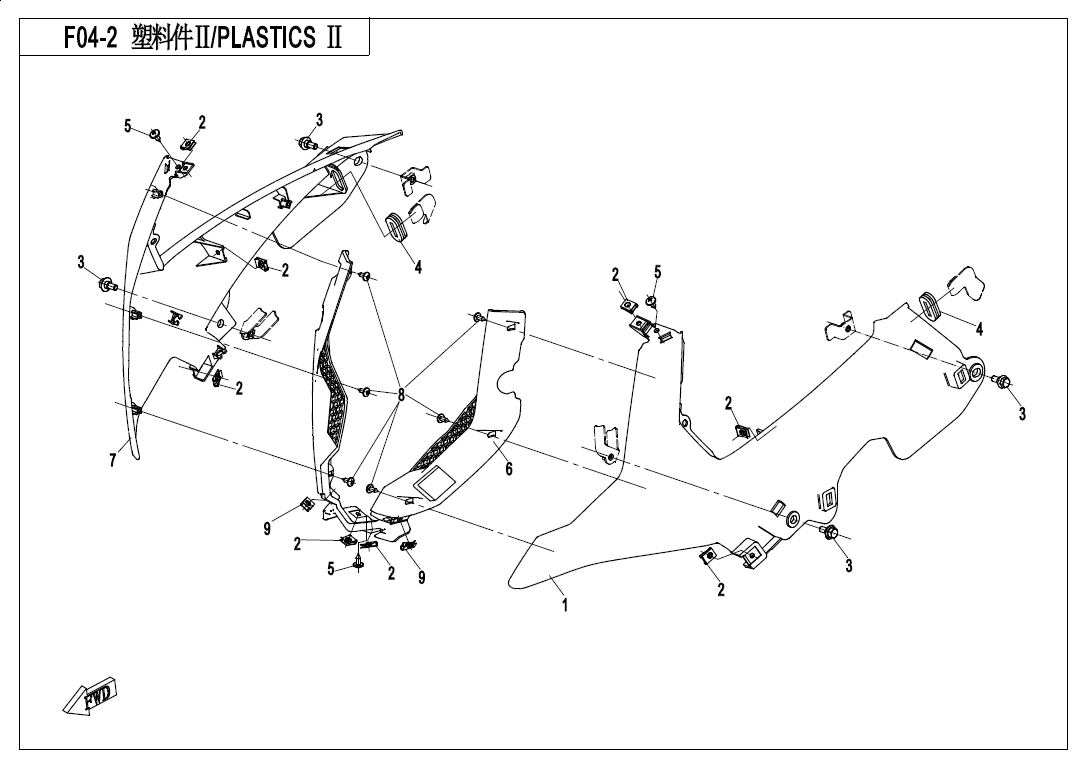

Plasticsâ ¡ - F04-2
11 parts ↗

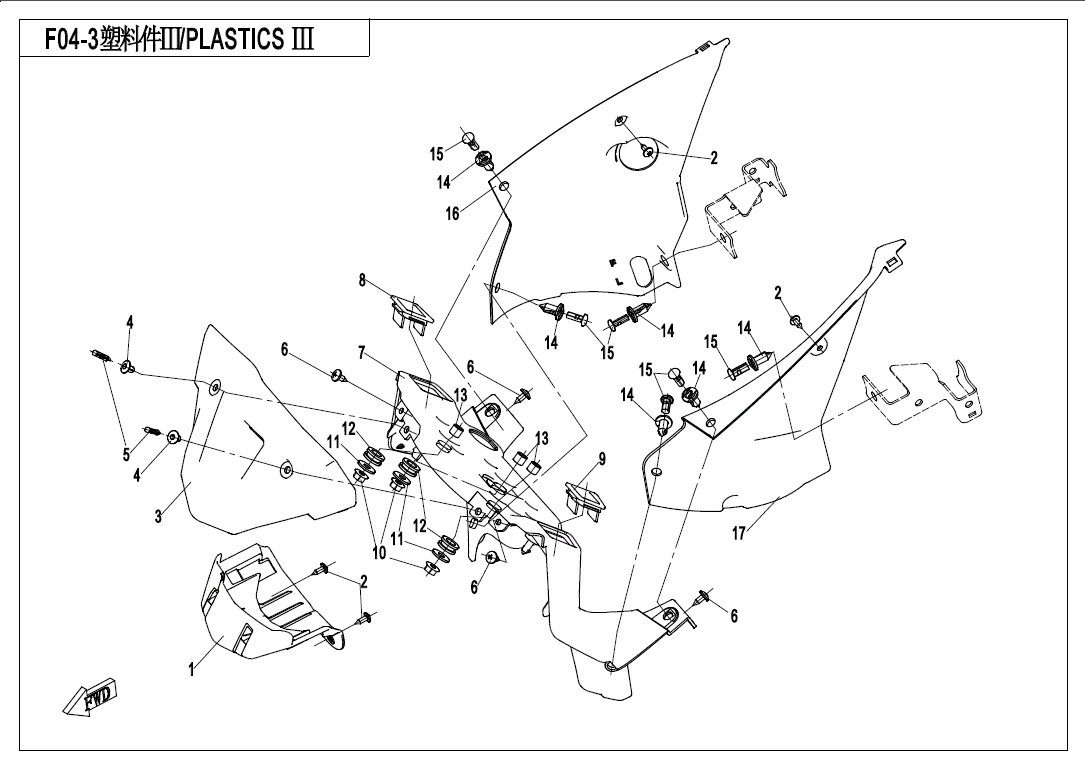

Plasticsâ ¢ - F04-3
17 parts ↗

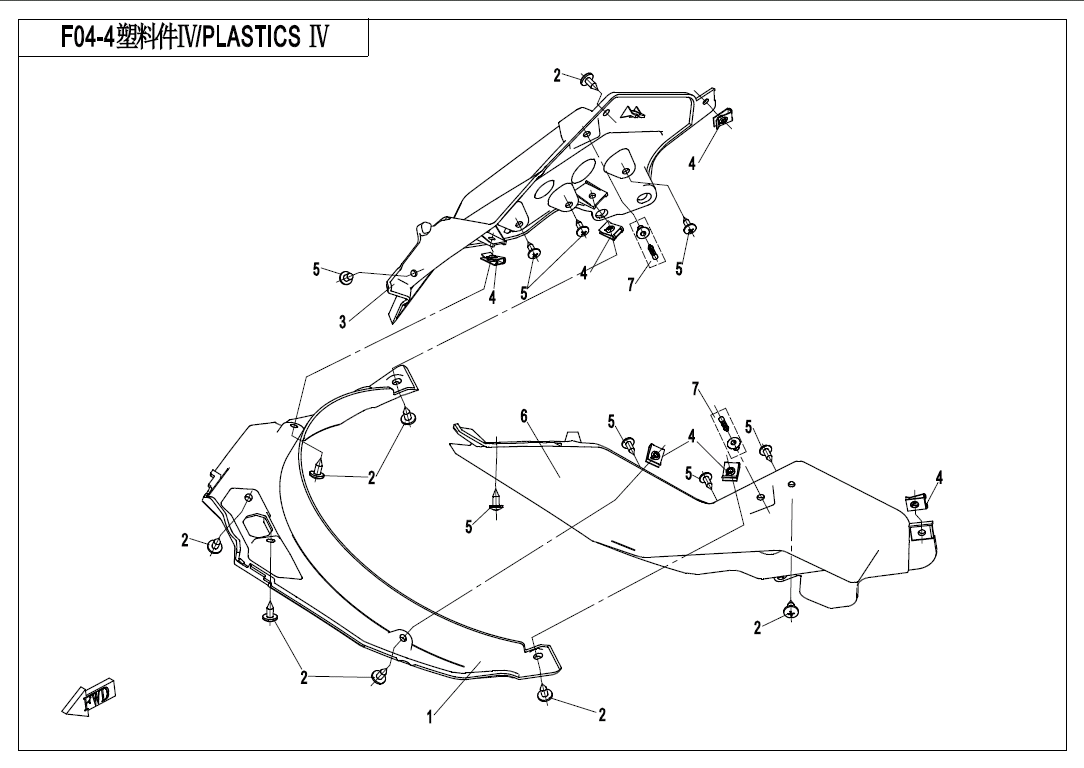

Plasticsâ £ - F04-4
7 parts ↗

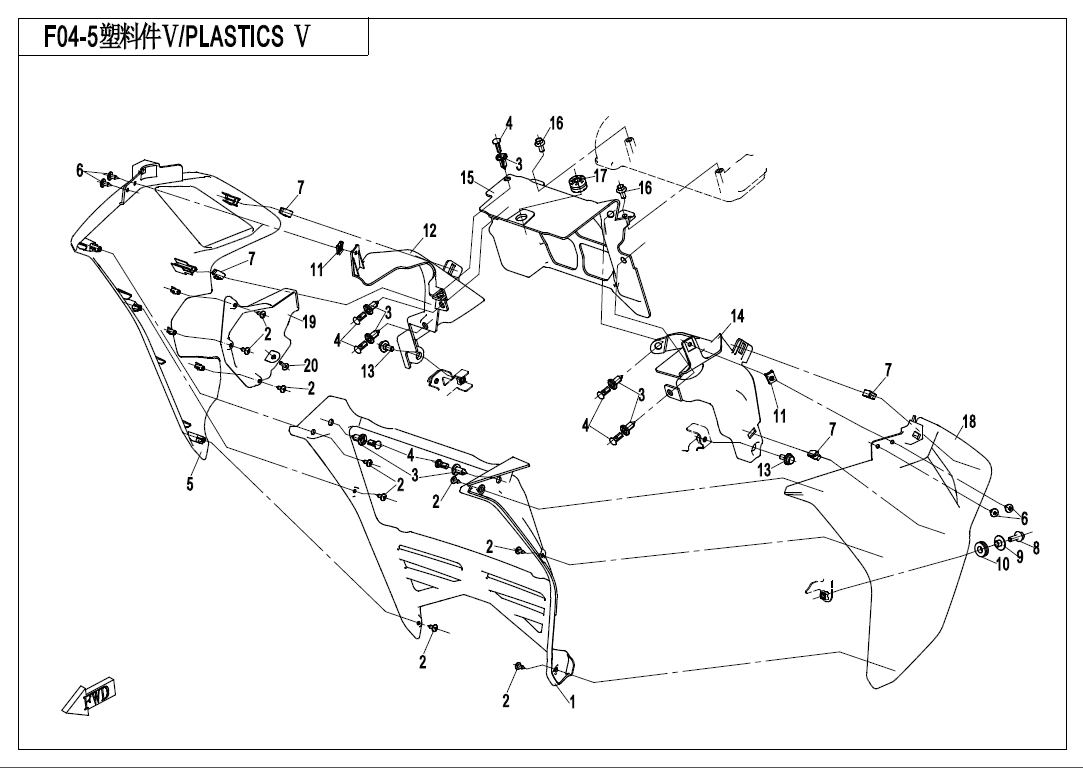

Plasticsâ ¤ - F04-5
20 parts ↗

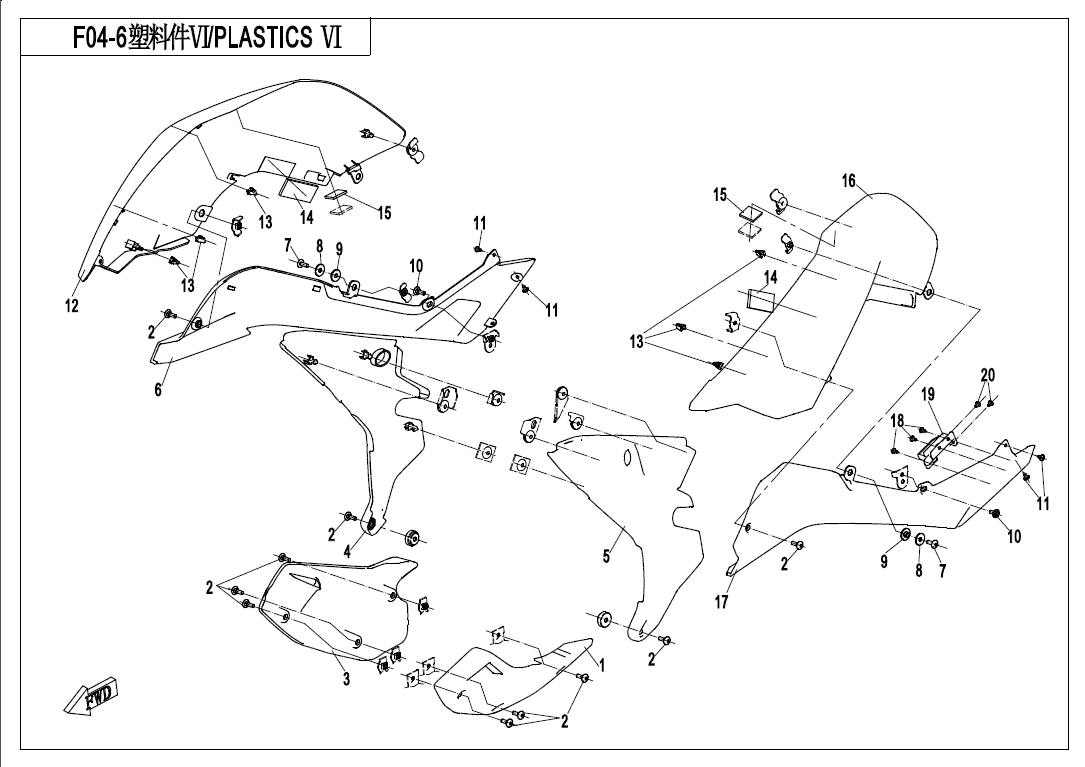

Plasticsâ ¥ - F04-6
22 parts ↗

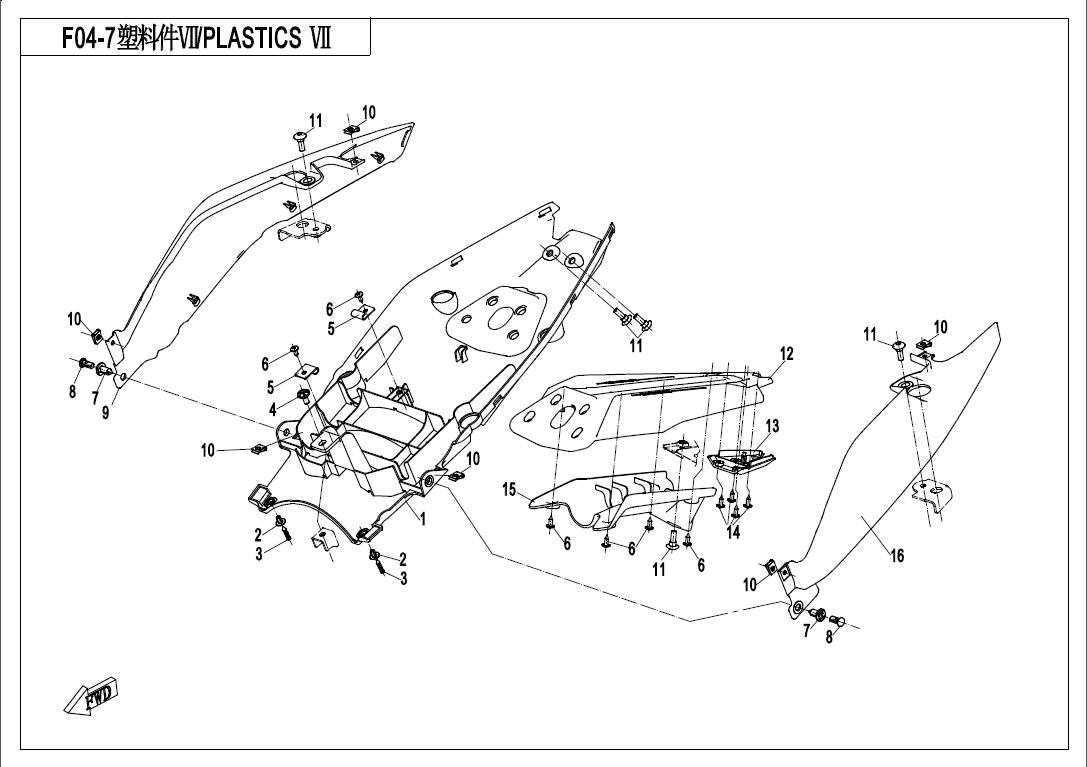

Plasticsâ ¦ - F04-7
18 parts ↗

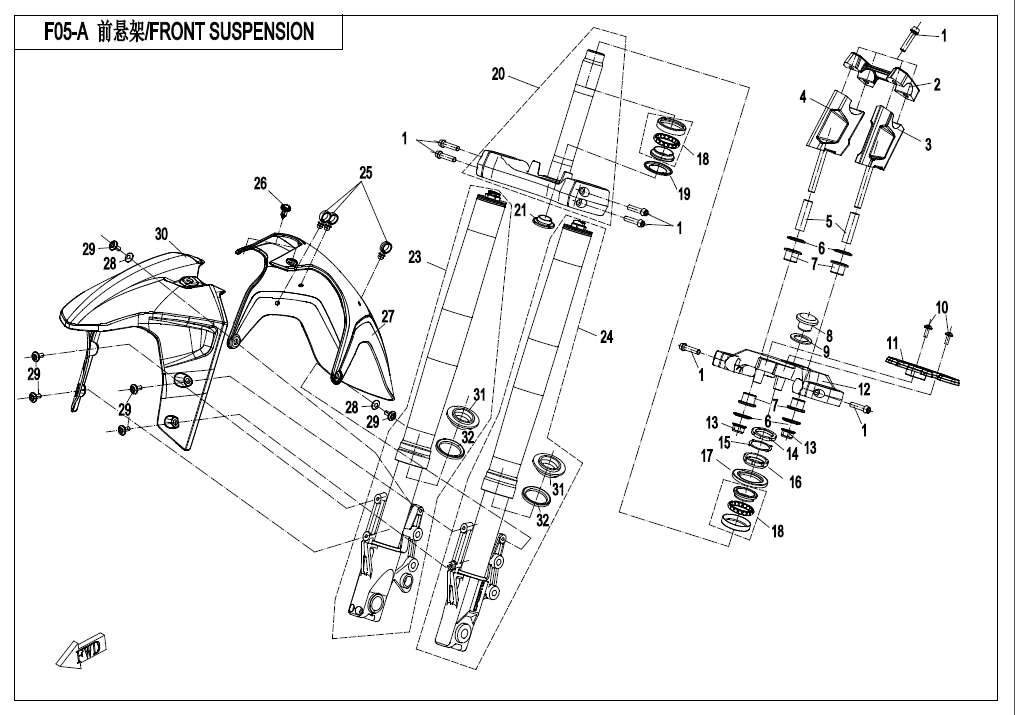

Front Suspensionï¼High Configurationï¼ - F05-A
32 parts ↗

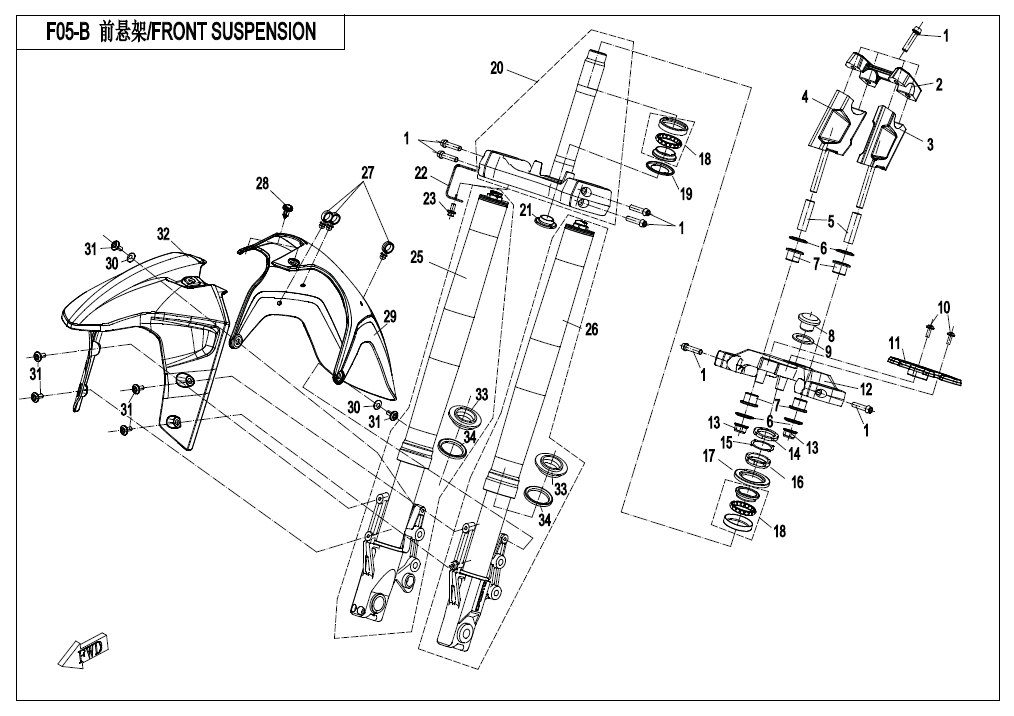

Front Suspensionï¼Low Configurationï¼ - F05-B
34 parts ↗

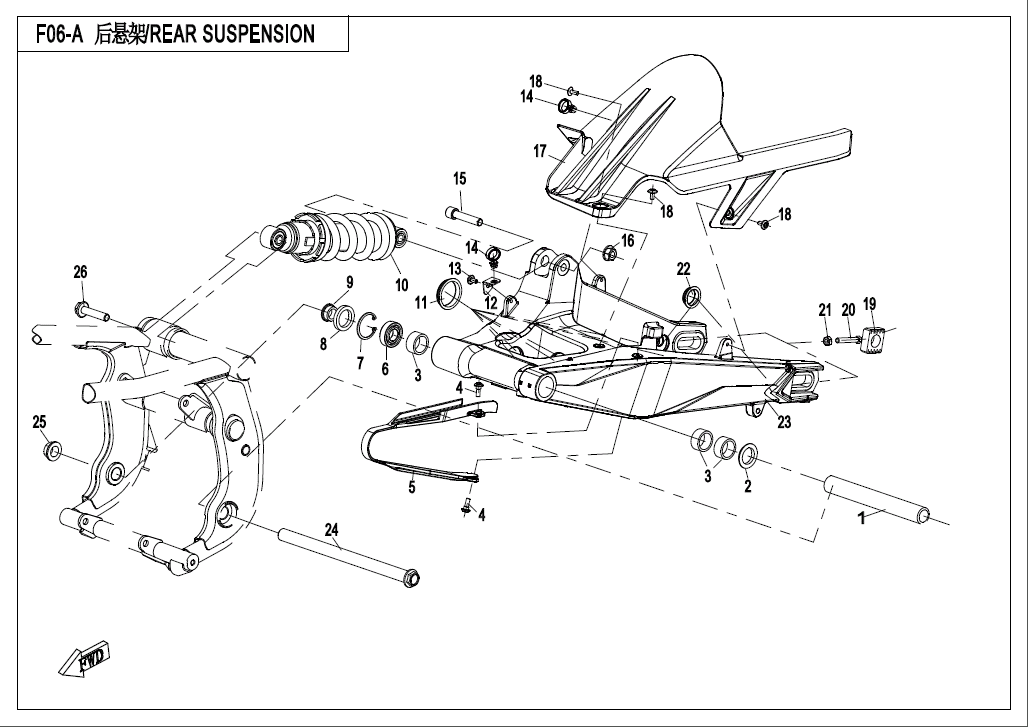

Rear Suspensionï¼High Configurationï¼ - F06-A
26 parts ↗

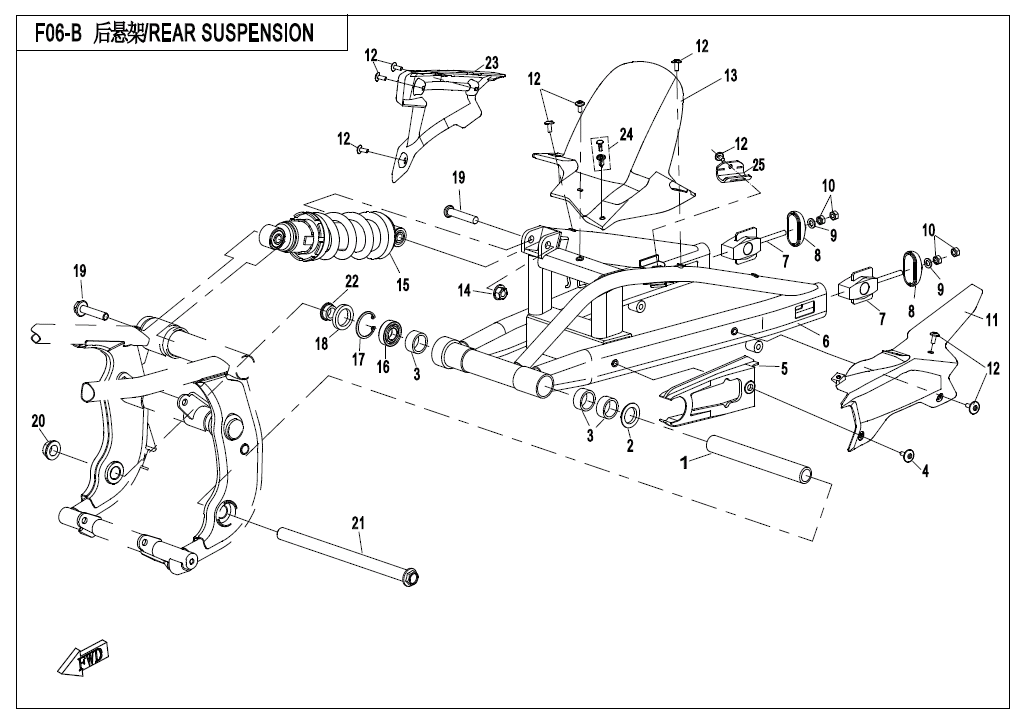

Rear Suspensionï¼Low Configurationï¼ - F06-B
25 parts ↗
Front Wheelï¼High Configurationï¼ - F07-A
9 parts ↗

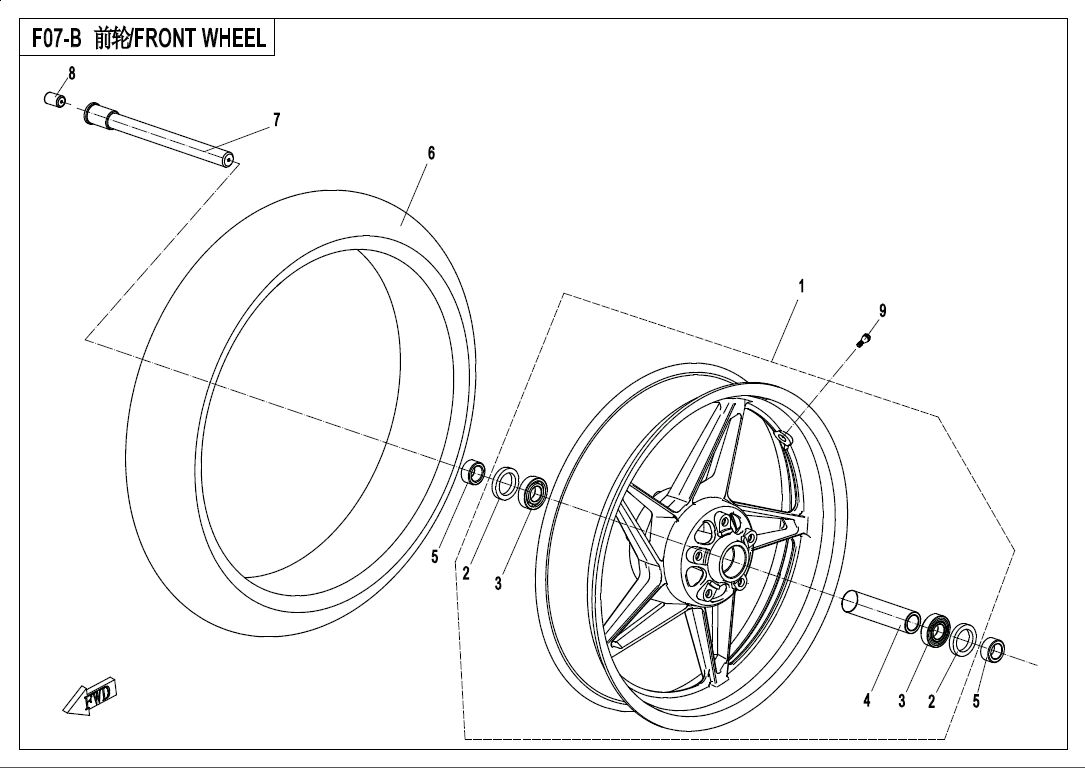

Front Wheel ï¼Low Configurationï¼ - F07-B
10 parts ↗

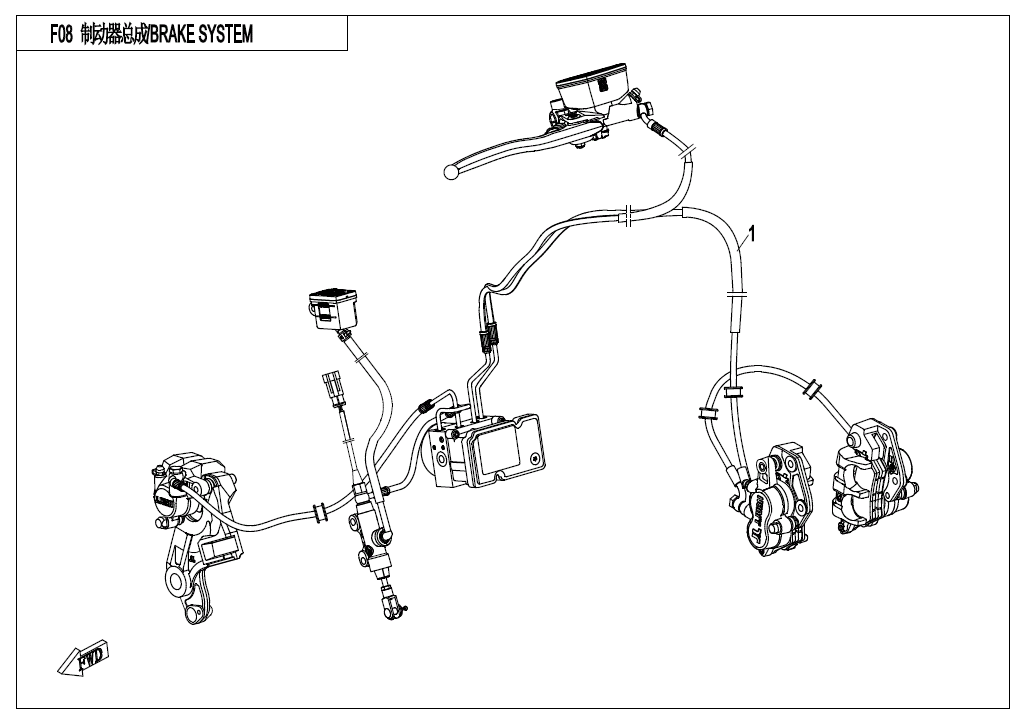

Brake System - F08
1 parts ↗

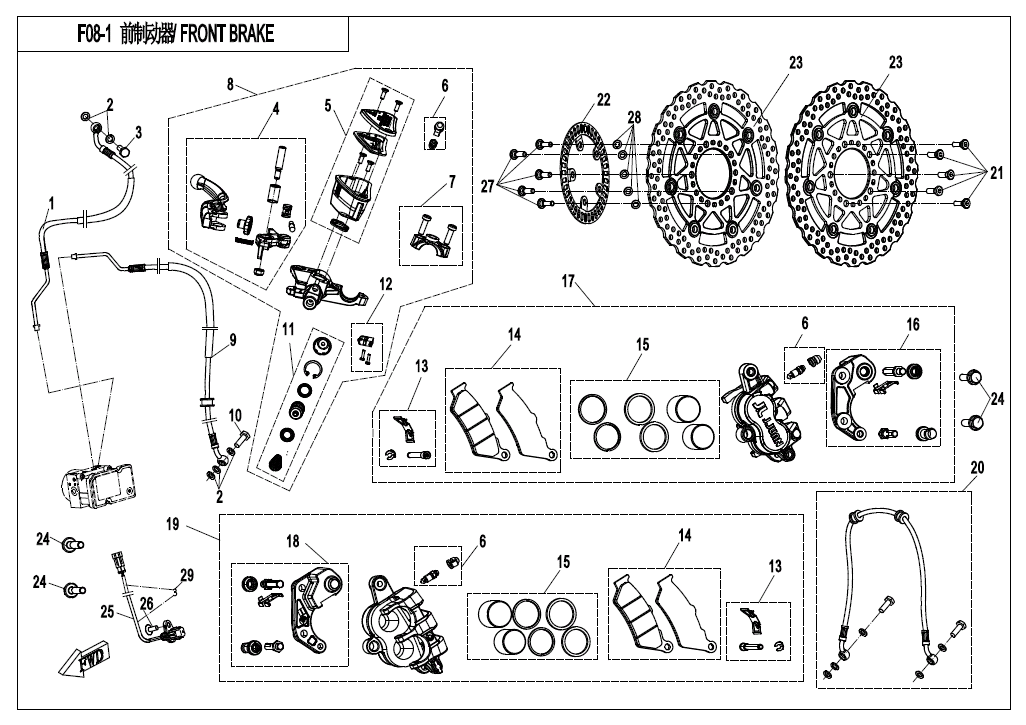

Front Brake - F08-1
29 parts ↗

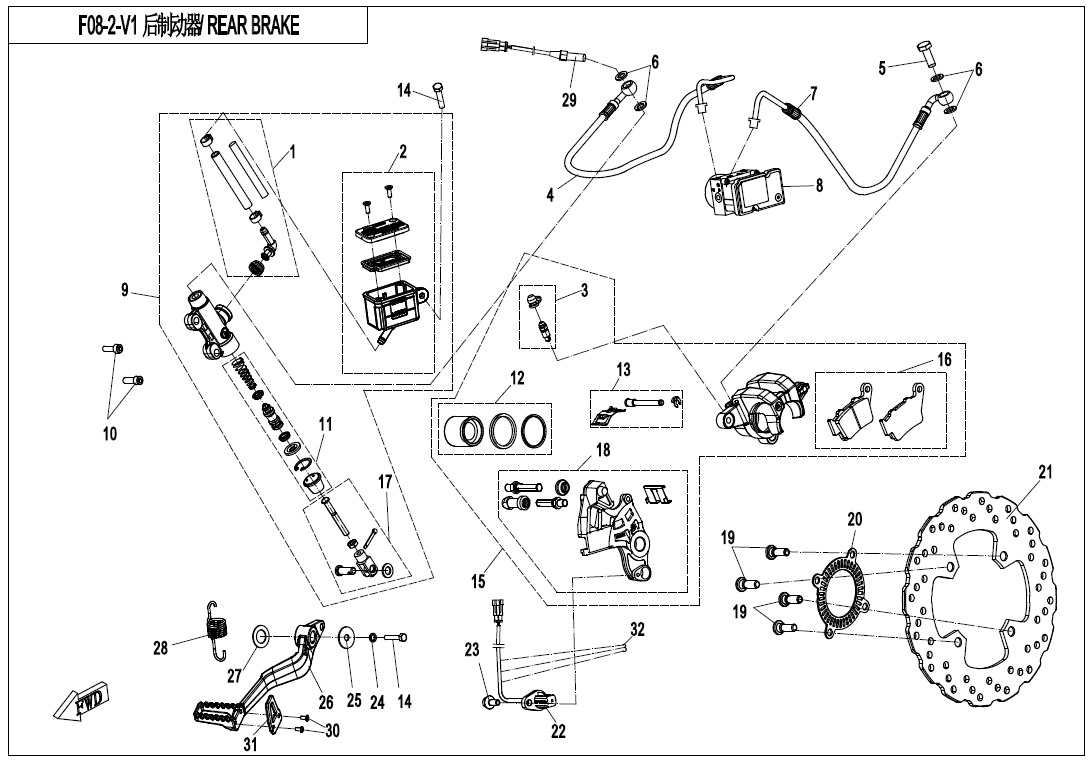

Rear Brake - F08-2-V1
32 parts ↗

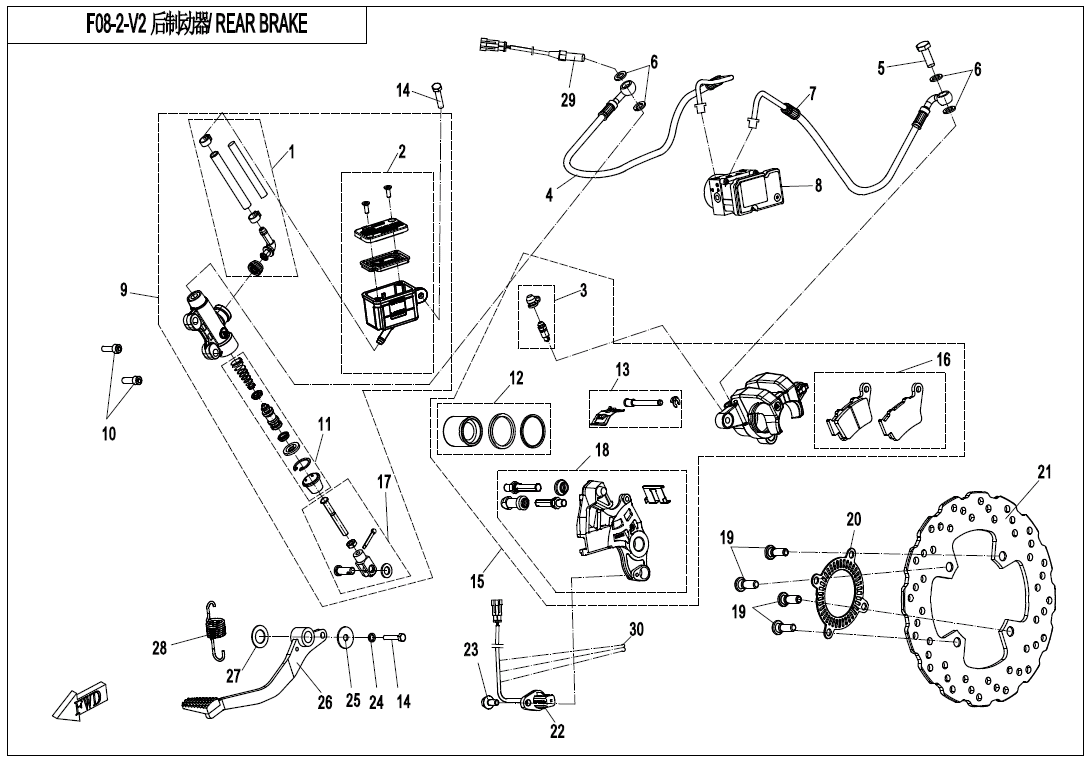

Rear Brake - F08-2-V2
30 parts ↗

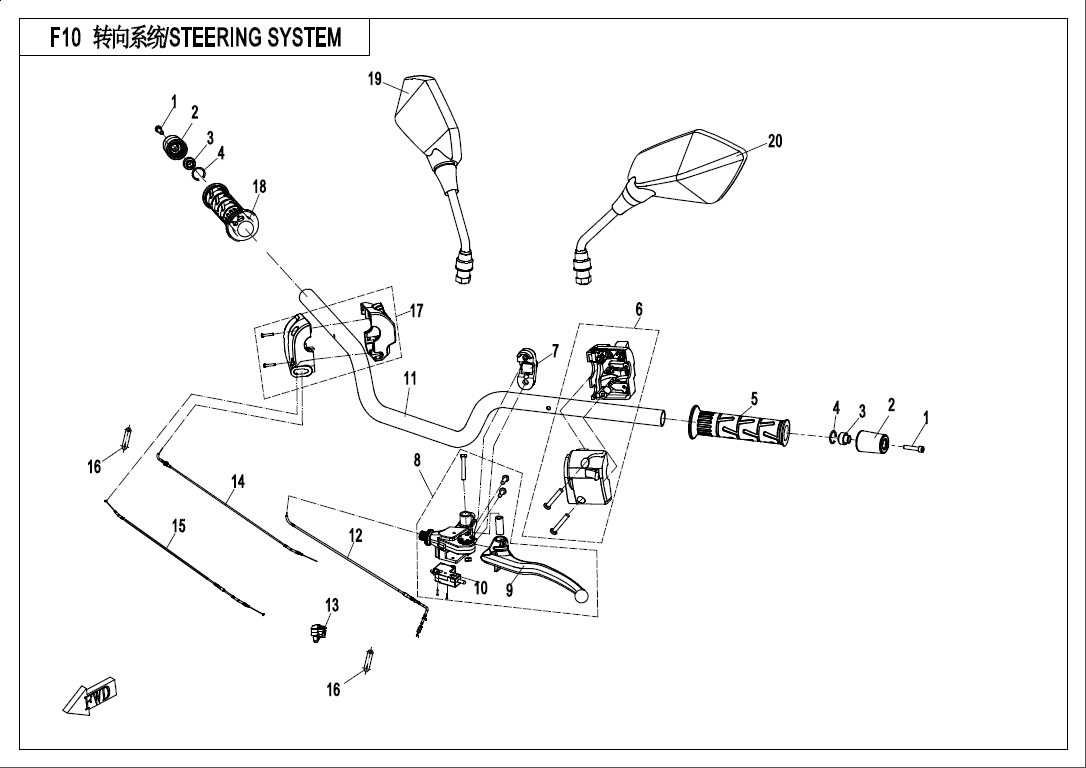

Steering System - F10
20 parts ↗

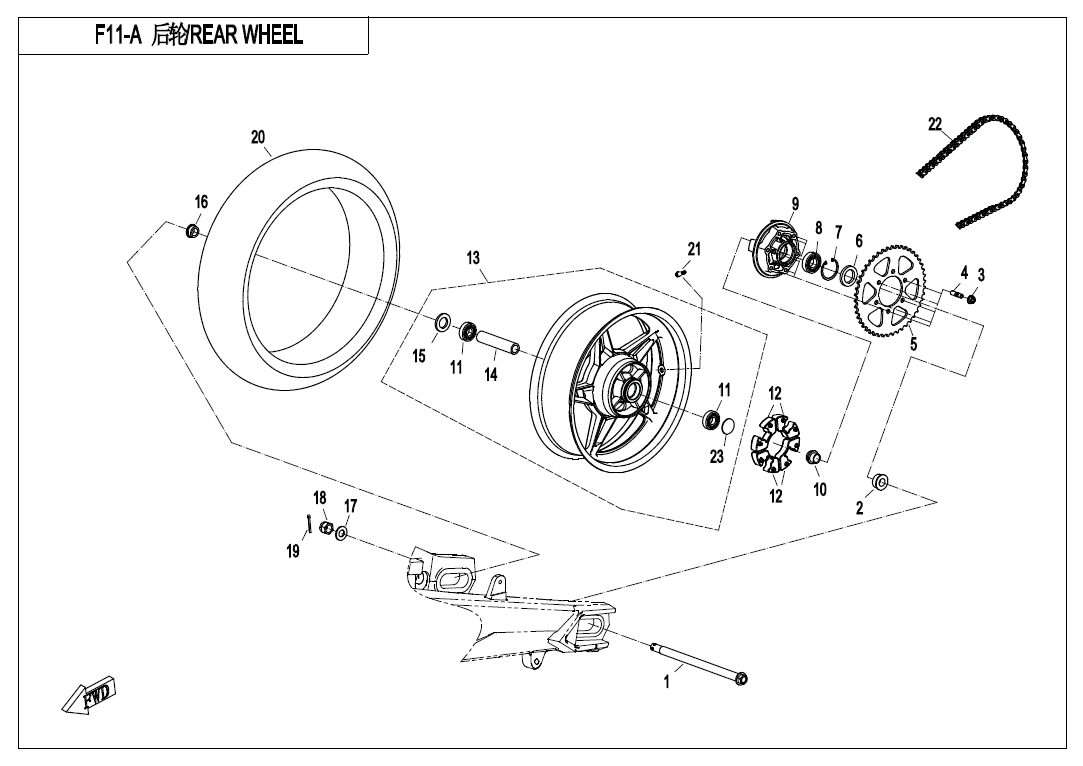

Rear Wheelï¼High Configurationï¼ - F11-A
23 parts ↗

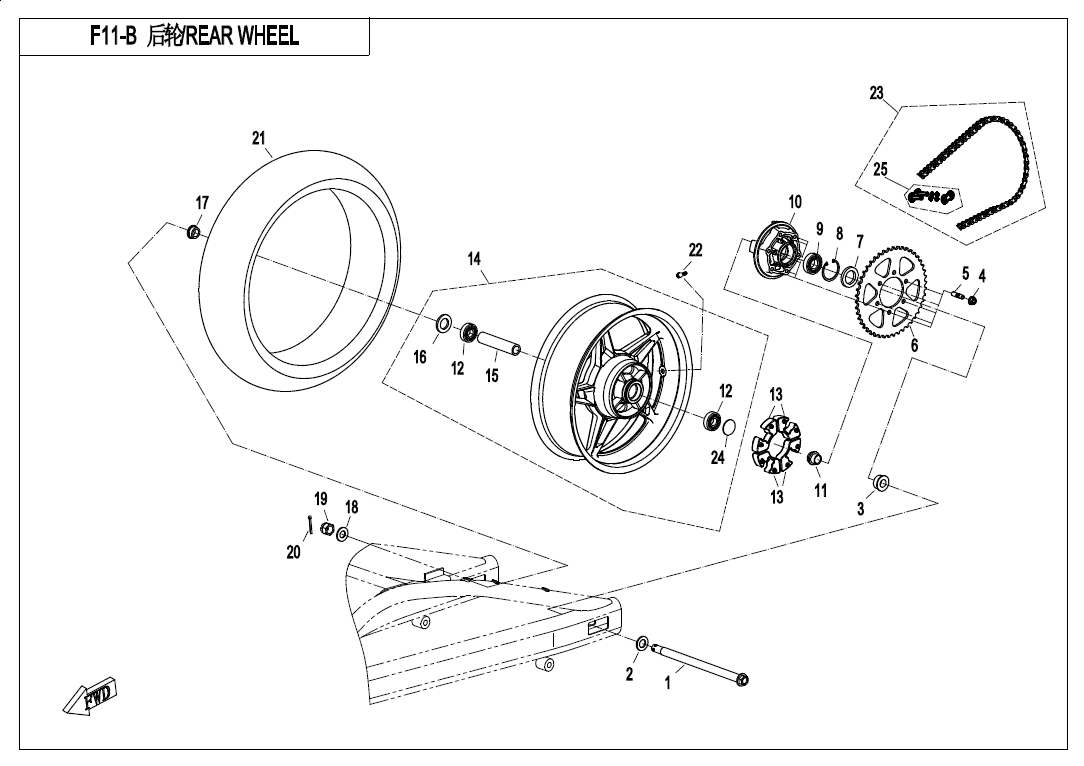

Rear Wheelï¼Low Configurationï¼ - F11-B
27 parts ↗

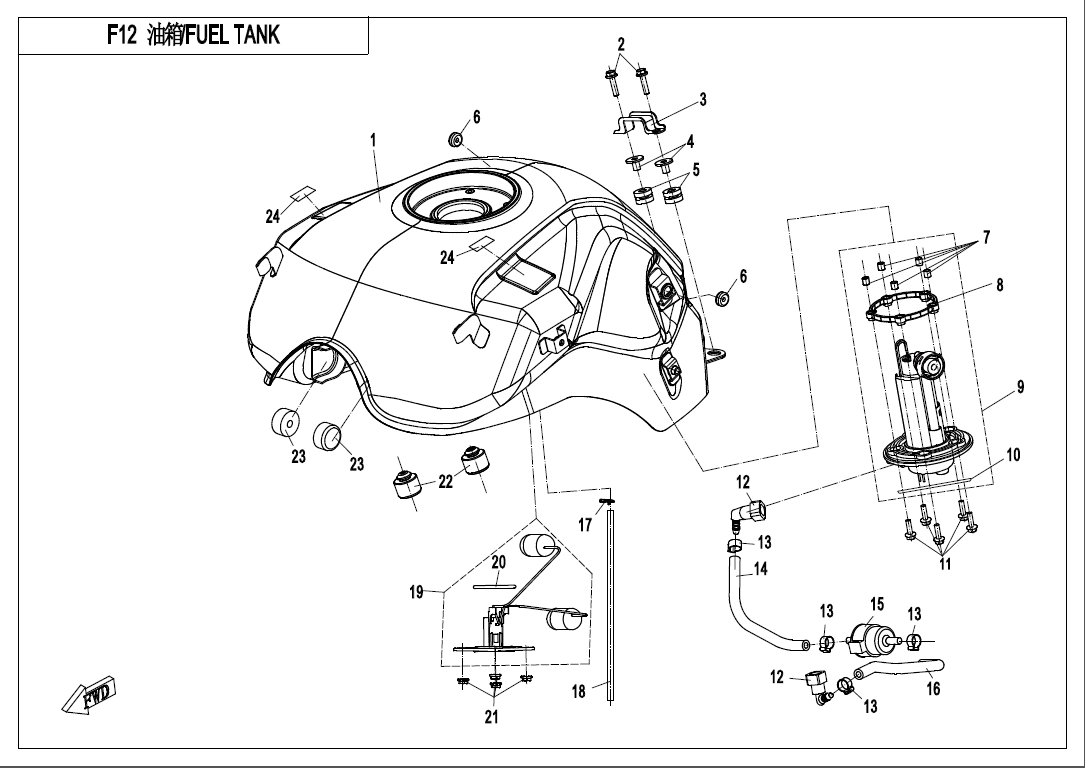

Fuel Tank - F12
25 parts ↗

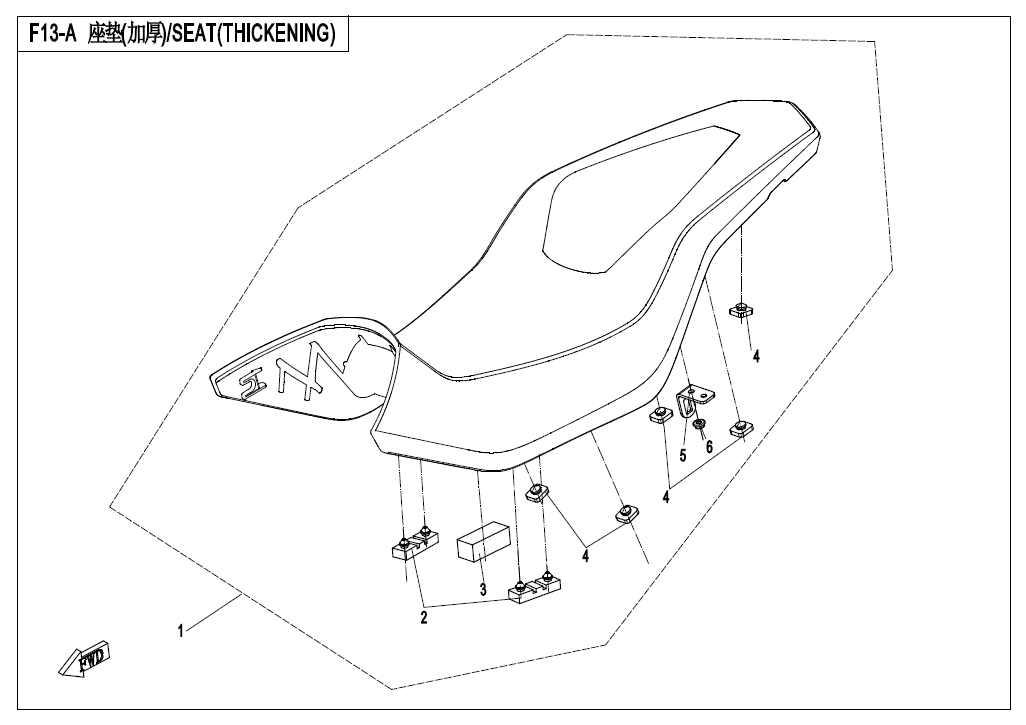

Seatï¼Thickeningï¼ - F13-A
7 parts ↗

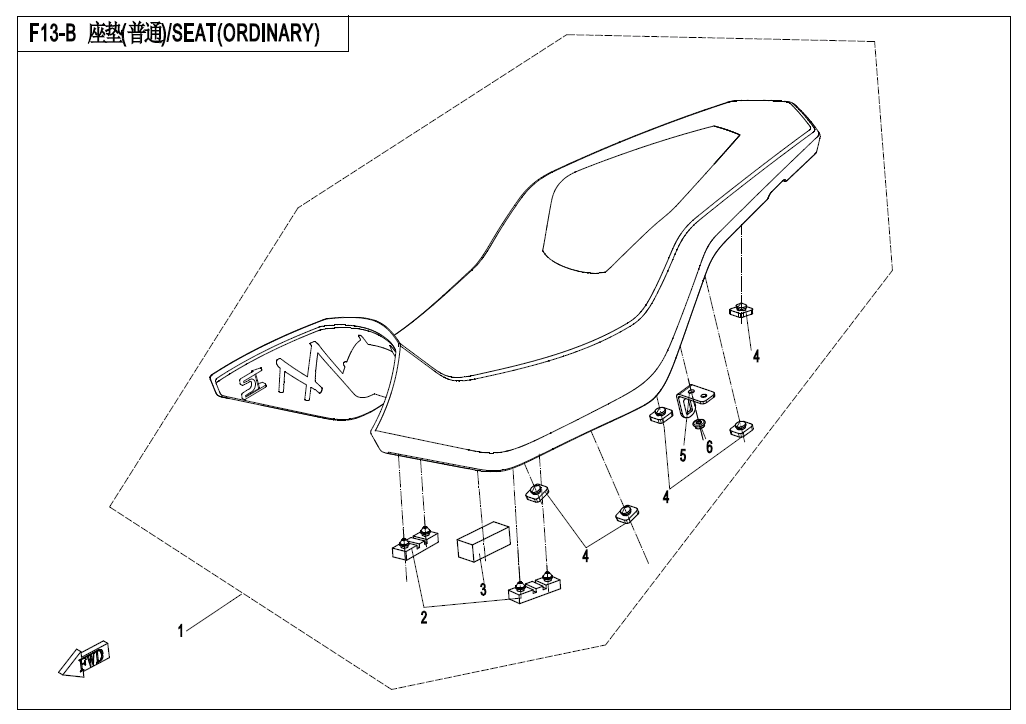

Seatï¼Ordinaryï¼ - F13-B
7 parts ↗

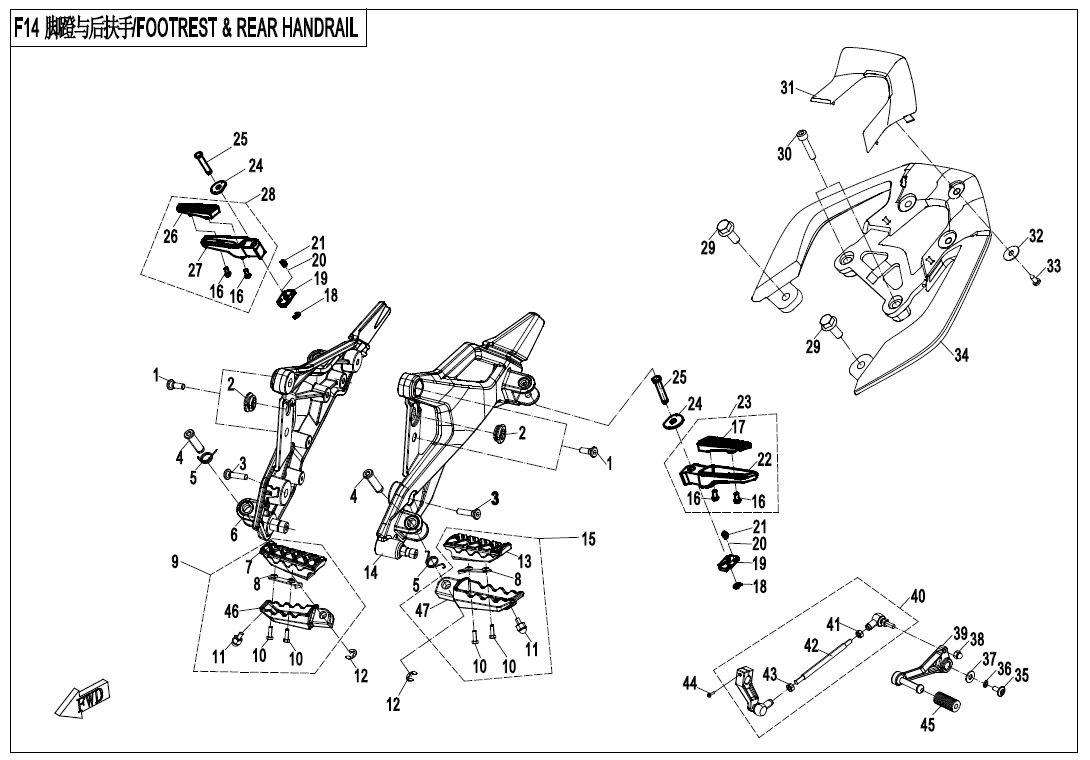

Footrest / Rear Handrail - F14-V1
48 parts ↗

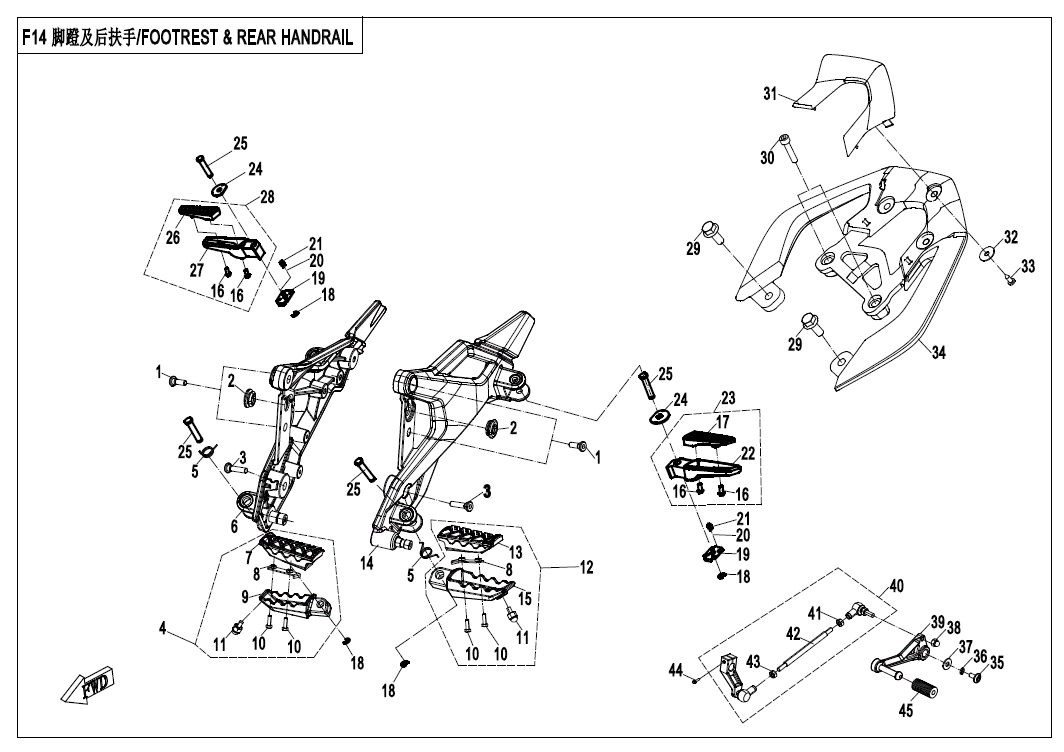

Footrest / Rear Handrail - F14-V2
46 parts ↗

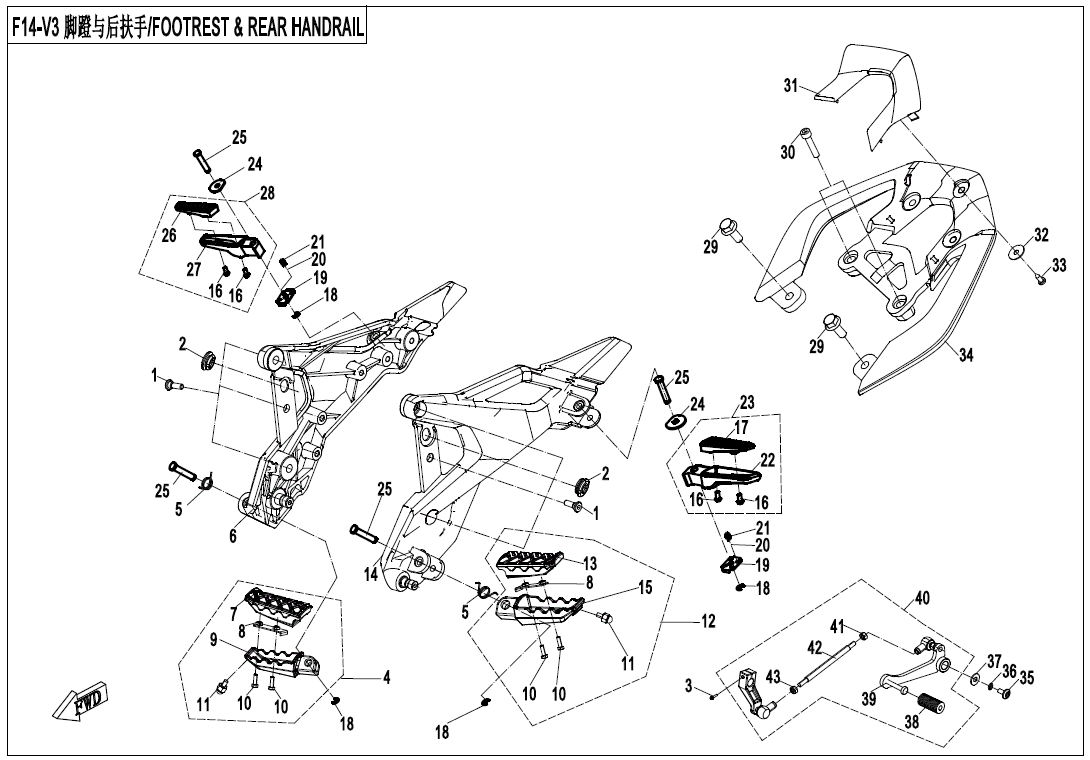

Footrest / Rear Handrail - F14-V3
44 parts ↗

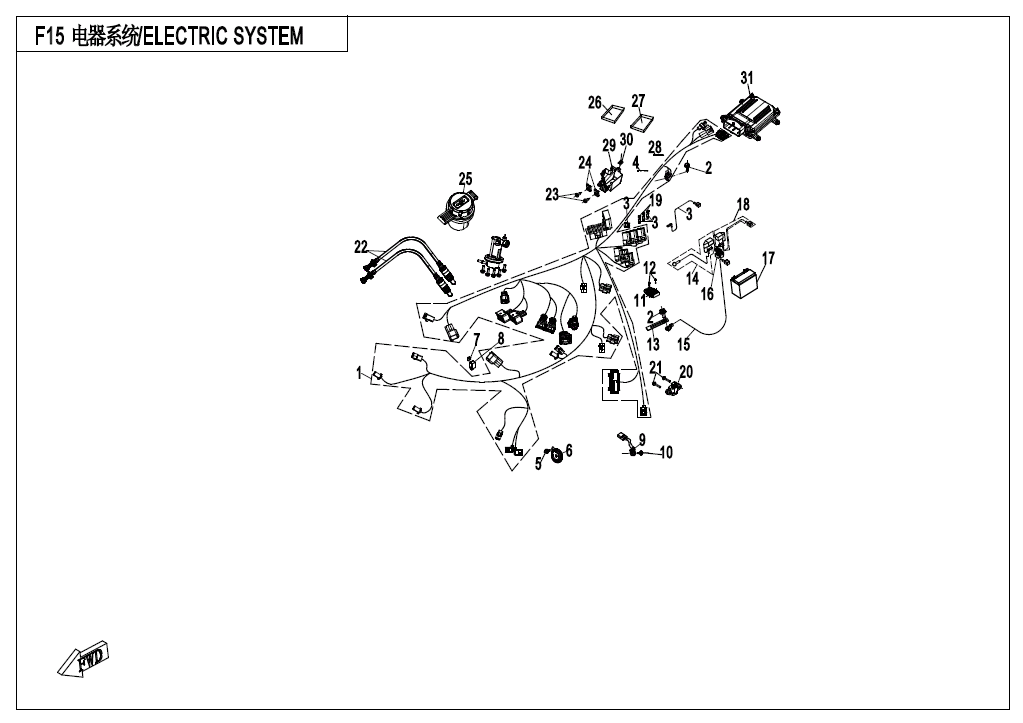

Electric System - F15
32 parts ↗

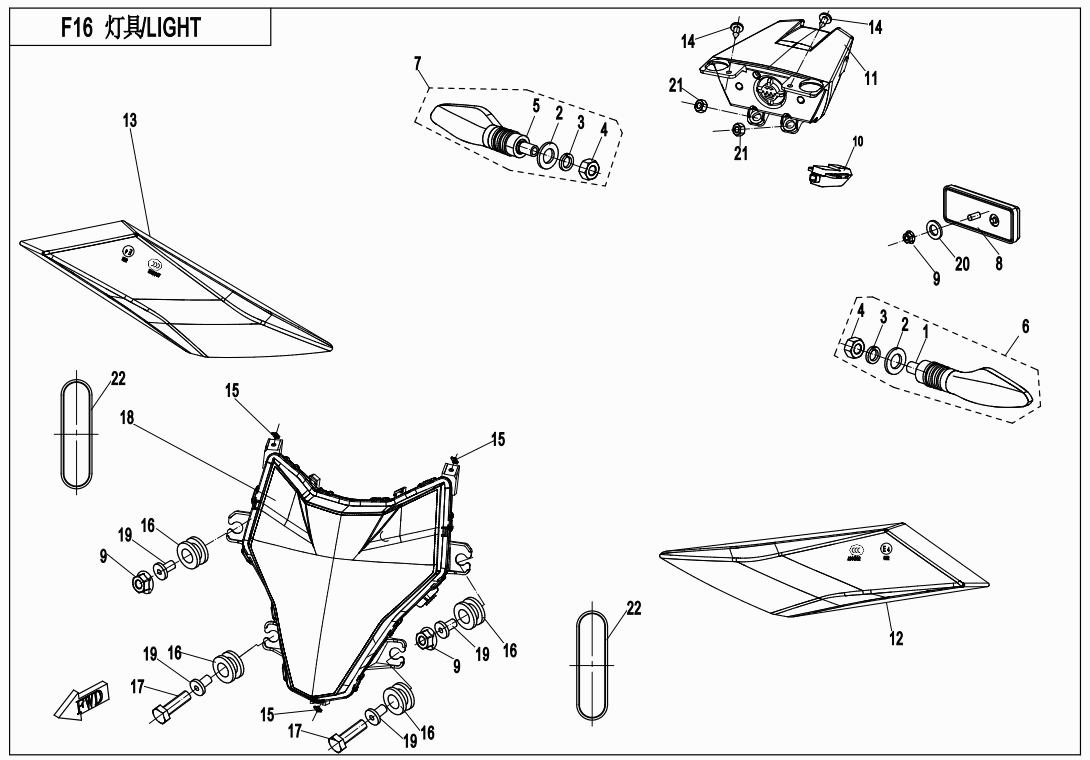

Light - F16-V1
22 parts ↗

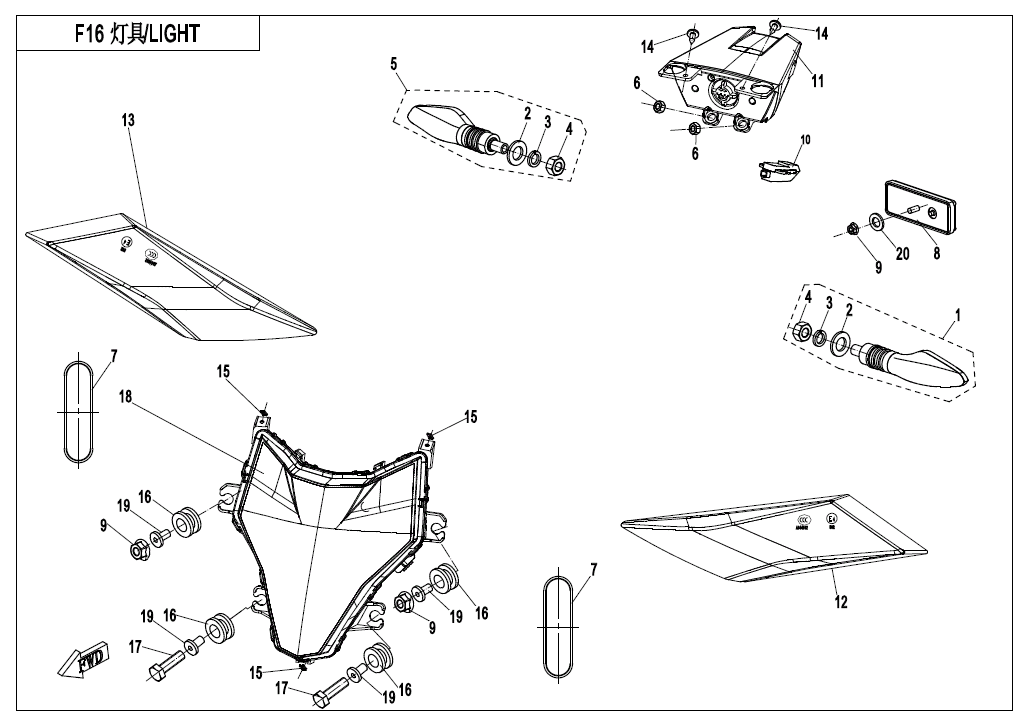

Light - F16-V2
20 parts ↗

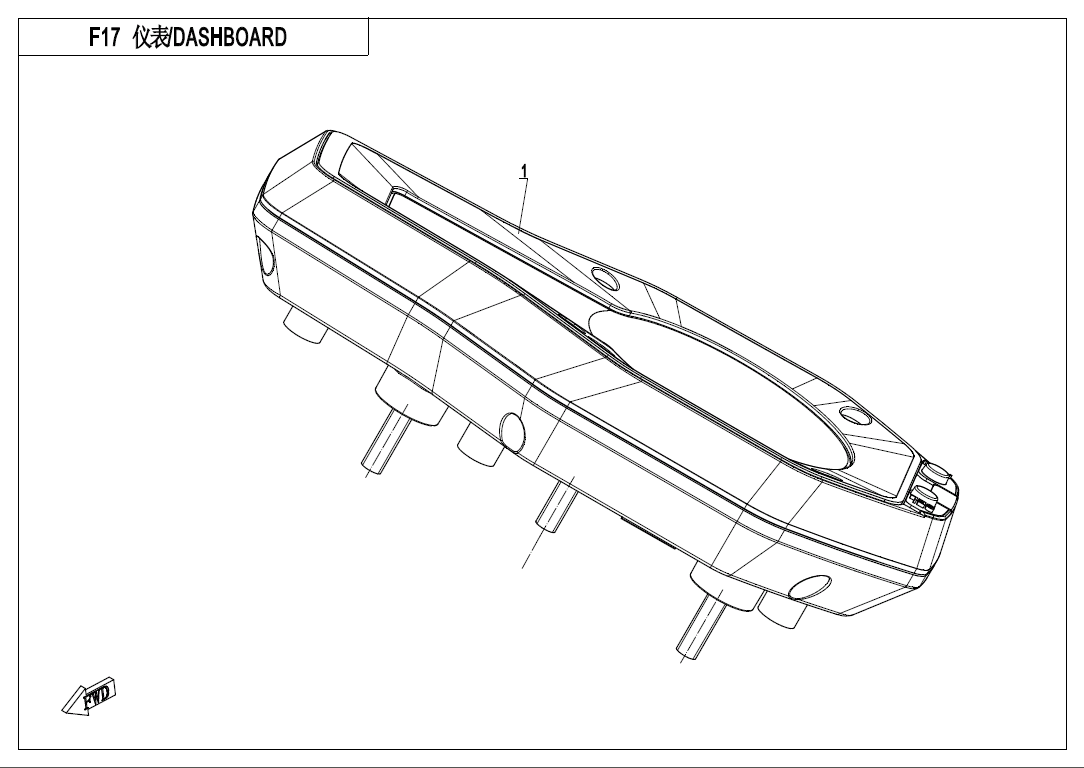

Dashboard - F17
1 parts ↗

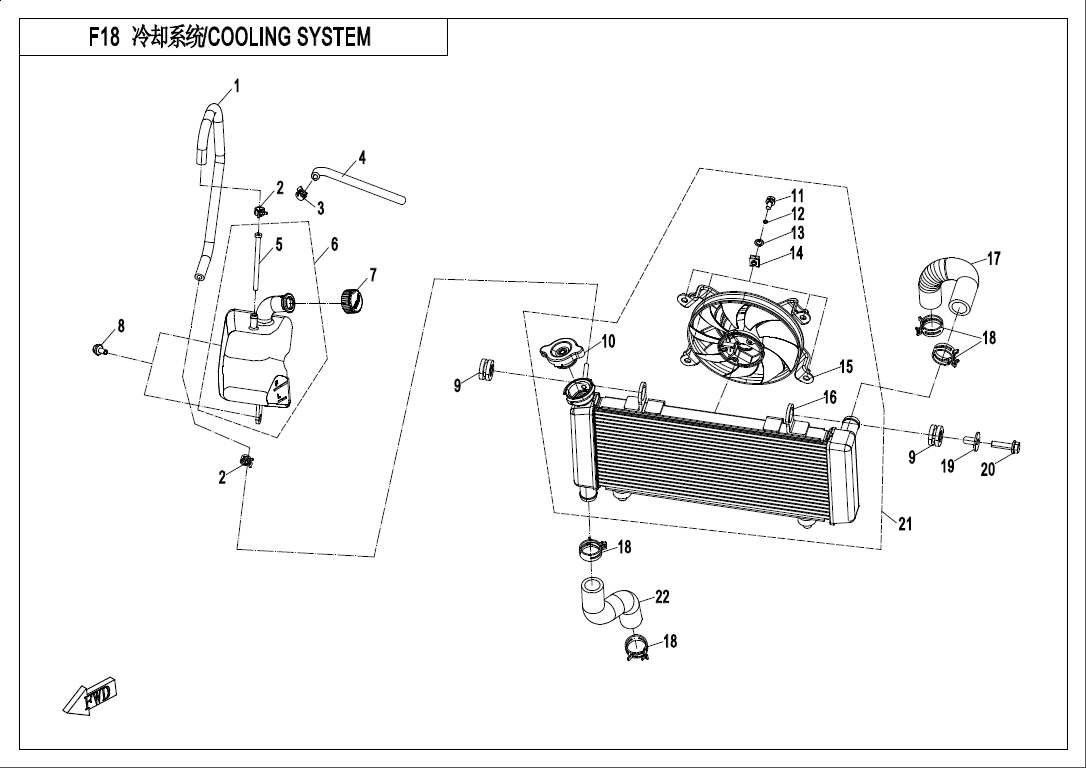

Cooling System - F18
22 parts ↗
Decal(Warning) - F19-A
3 parts ↗
Decal(New Royal Blue) - F19-B
New Royal Blue
1 parts ↗
Decal(Pearl White) - F19-C
Pearl White
1 parts ↗
Decal(Arg) - F19-D
1 parts ↗

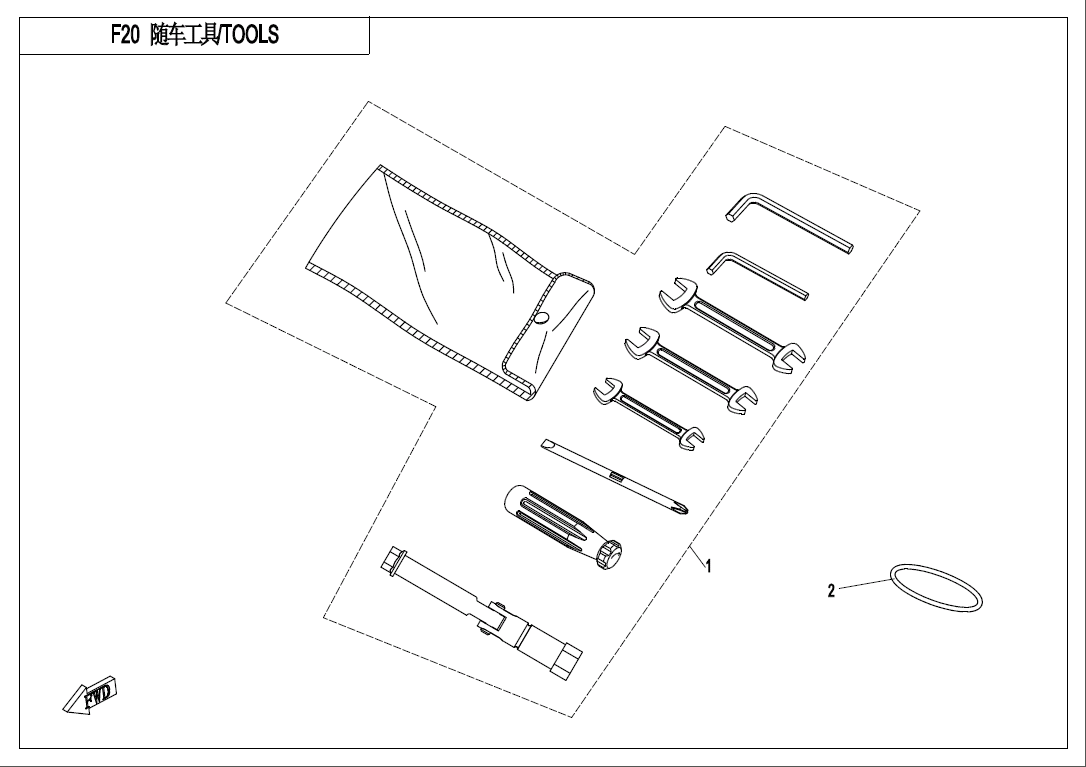

Tools - F20
2 parts ↗

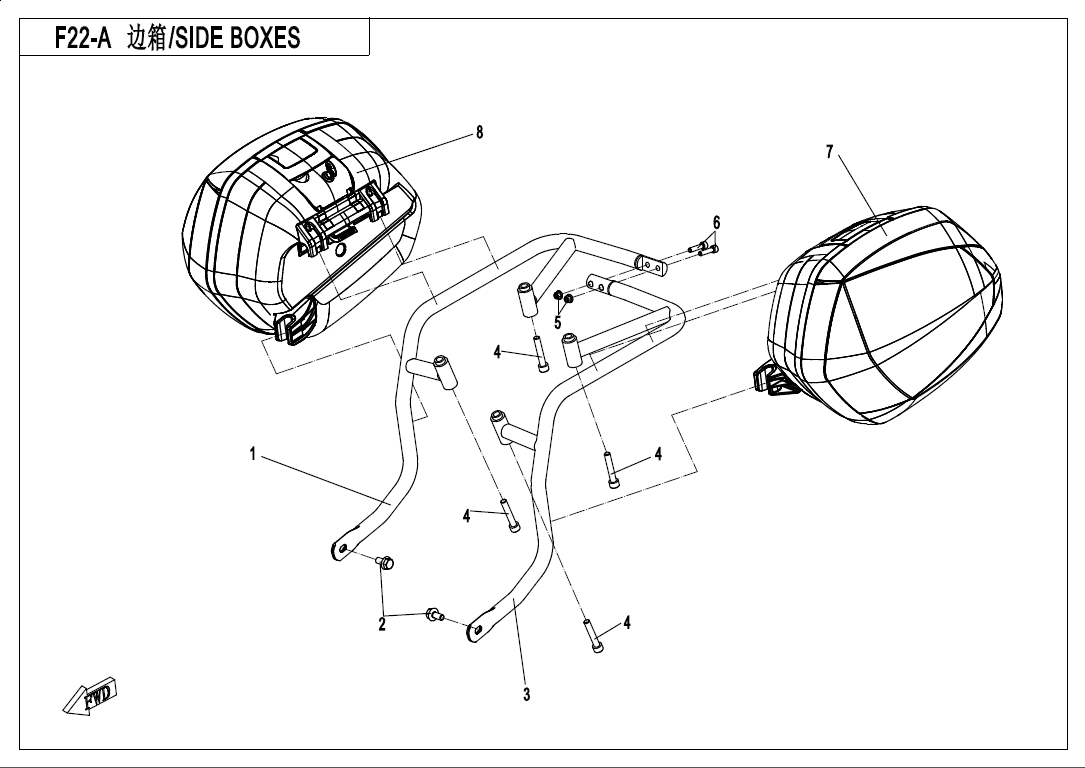

Side Boxesï¼Plasticï¼ - F22-A
8 parts ↗

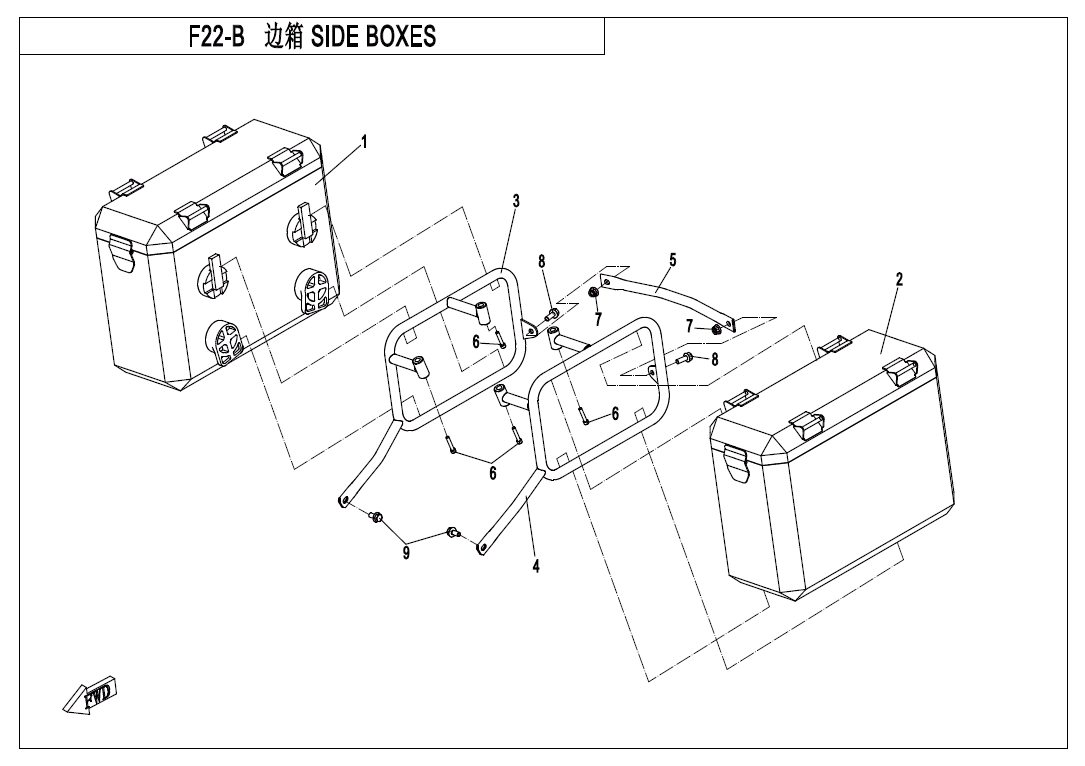

Side Boxesï¼Aluminium Alloyï¼ - F22-B
9 parts ↗

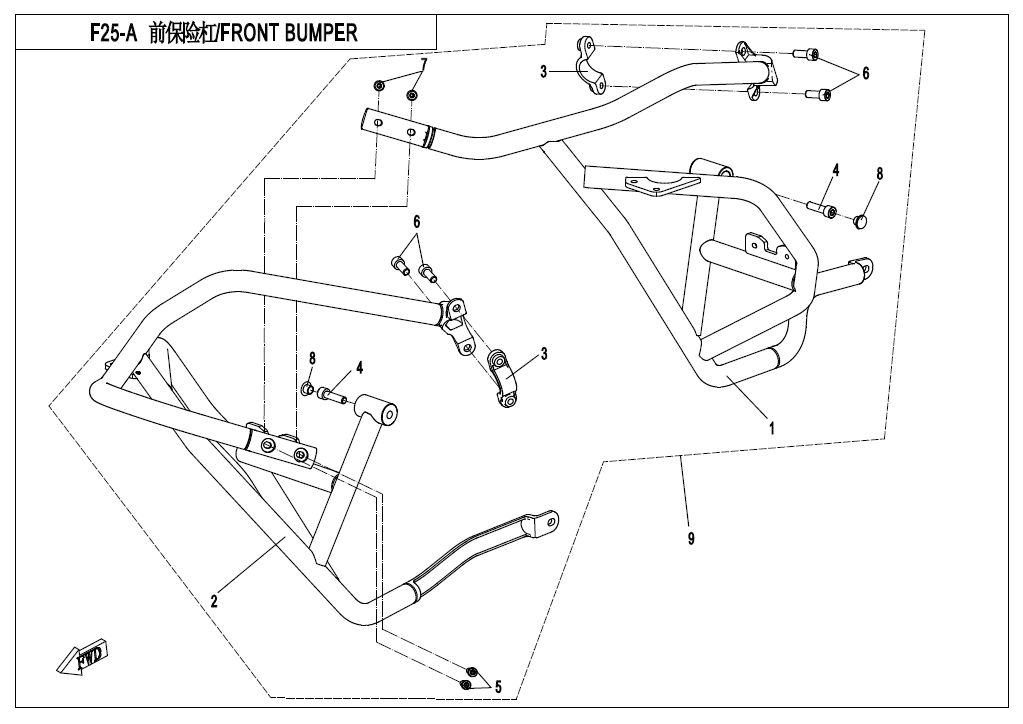

Front Bumper(Civil) - F25-A
9 parts ↗

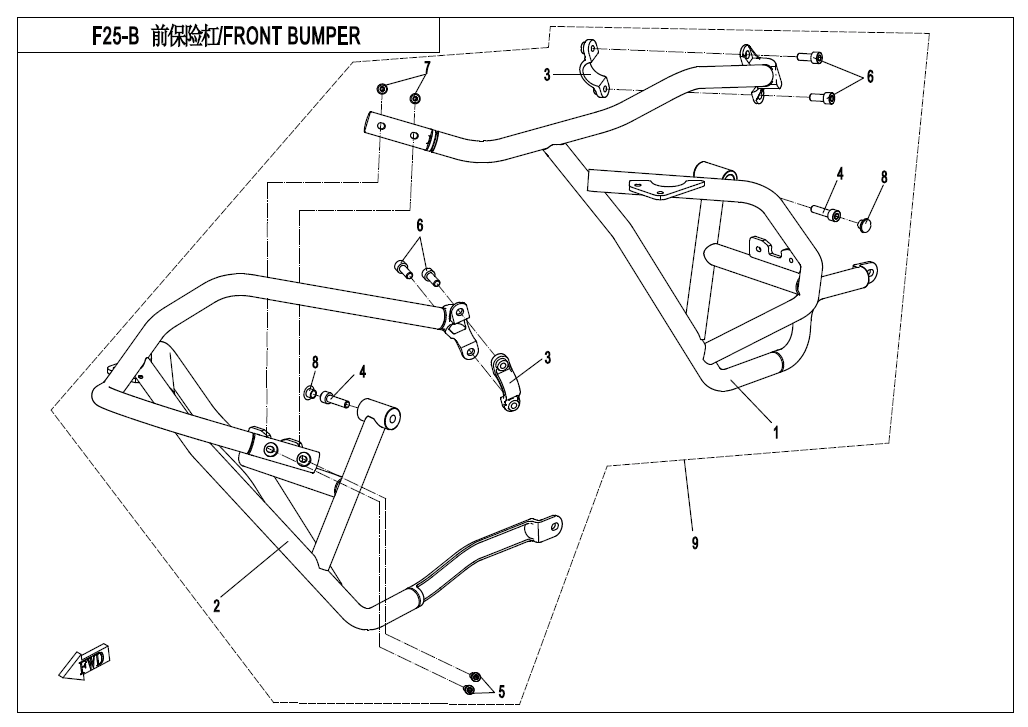

Front Bumper(Police) - F25-B
9 parts ↗

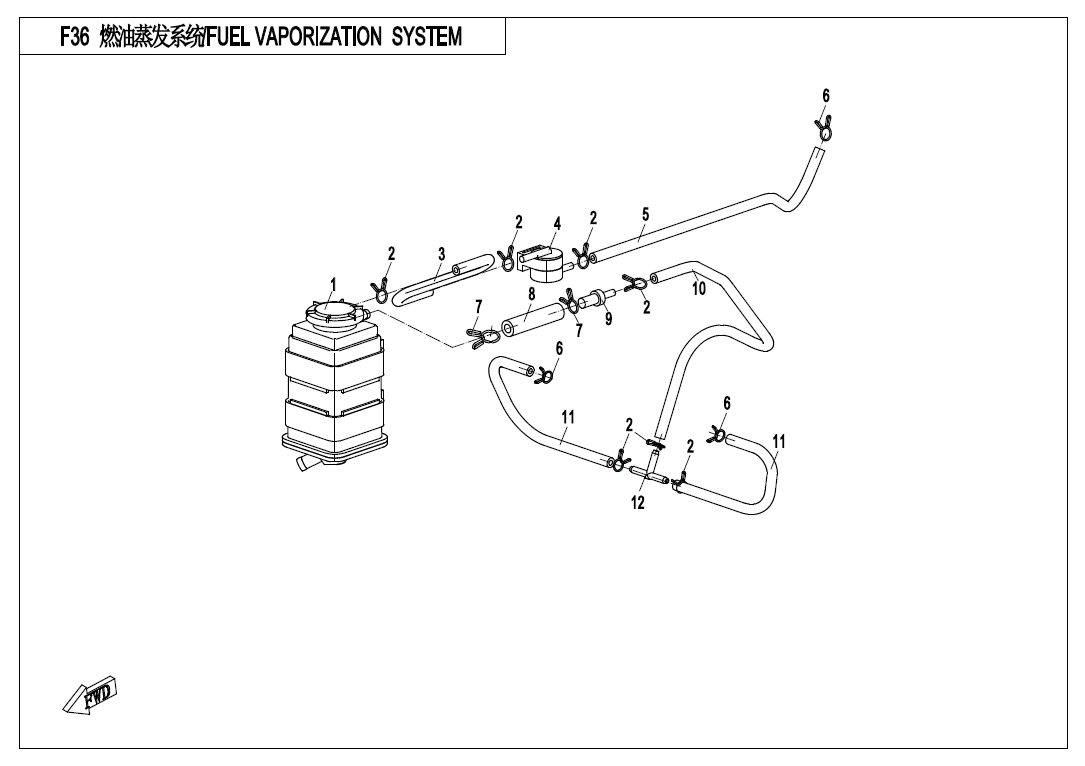

Fuel Vaporization System - F36
12 parts ↗
OwnerâS Manual - F38
3 parts ↗

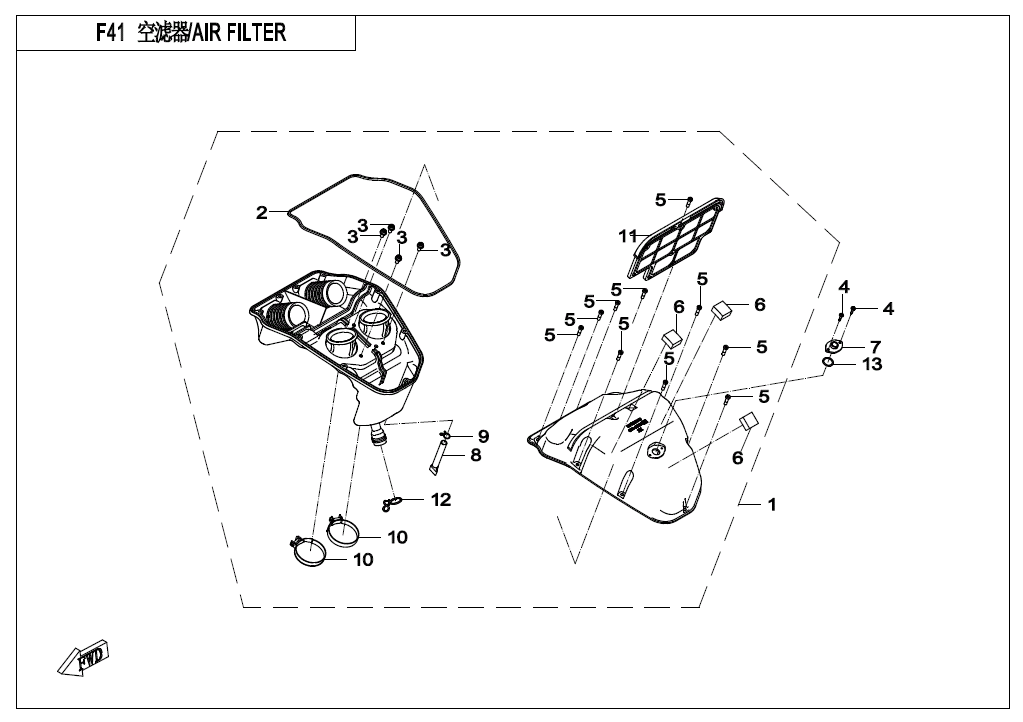

Air Filter - F41
13 parts ↗
